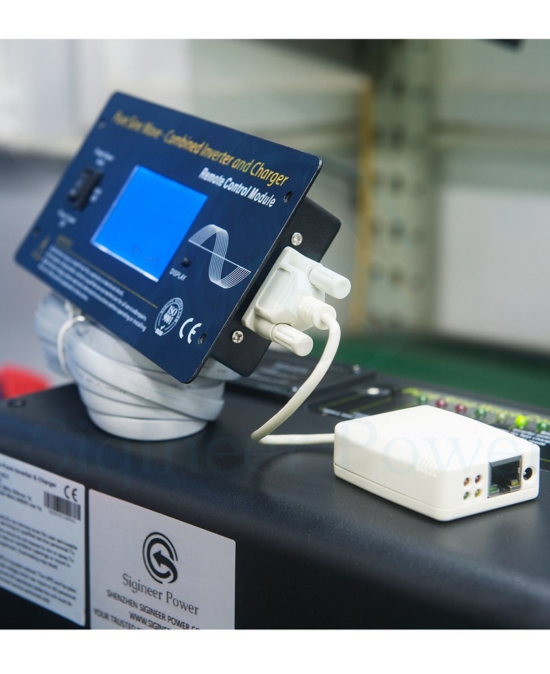

This SNMP Card is compatible with Sigineer Power’s Remote On/Off Switch with LCD Monitoring Screen.
It can be plugged to the RS232 port on the LCD remote side and integrates with our Winpower software to monitor the inverter status online.
It allows remote monitor multiple inverters from anywhere with internet access.
SNMP Card includes: a SNMP card, a power supply, a VCD.
Size(L x W x H):3″x3″x1″/7.5*7.5*2.5CM
Allows monitoring of multiple UPSs through RJ-45 network connection
Real-time dynamic graphs of UPS data (voltage, frequency, load level, battery level)
Warning notifications via audible alarm, broadcast, mobile messenger, e-mail and SNMP traps
Historic data log stored in centralized PC database
Simple firmware upgrade with one click
Password security protection and remote access management
1-year product warranty
Size(L x W x H):3″x3″x1″/7.5*7.5*2.5CM
| Model # | Power | DC Input | AC Input | AC Output | Battery Charger | Transformer | Waveform | Features | Stock |
|---|---|---|---|---|---|---|---|---|---|
| OPS0612NC | 600 W | 12 Vdc | N/A | 120 Vac | N/A | Transformerless | Pure Sine | Parallel Capability | In Stock |
| PSW70612E | 600 W | 12 Vac | 230 Vac | 230 Vac | 20 A | Yes | Pure Sine | ||
| PSW70612NC | 600 W | 12 Vdc | 120 Vac | 120 Vac | 25 A | Yes | Pure Sine | ||
| OPS1012NC | 1000 W | 12 | N/A | 120 | N/A | N/A | Pure Sine | Parallel Capability | |
| PSW71024E | 1000 W | 24 Vdc | 230 Vac | 230 Vac | 15 A | Yes | Pure Sine | ||
| PSW7012NC | 1000 W | 12 Vdc | 120 Vac | 120 Vac | 25 A | Yes | Pure Sine | In Stock | |
| NVP1012E | 1000 W | 12 Vdc | N/A | 230 Vac | N/A | Transformerless | Pure Sine | ||
| UL1512NC | 1500 W | 12 Vdc | 120 Vac | 120 Vac | 50 A | Yes | Pure Sine | UL458 | In Stock |
| MSW1512E | 1500 W | 12 Vdc | N/A | 230 Vac | N/A | Transformerless | Modified Sine | Parallel Capability | |
| APC2048NC | 2000 W | 48 Vdc | 120 Vac | 120 Vac | 20 A | Yes | Pure Sine | ||
| UL2012NC | 2000 W | 12 Vdc | 120 Vac | 120 Vac | 70 A | Yes | Pure Sine | UL458 | |
| OPS2012E | 2000 W | 12 Vdc | N/A | 230 Vac | N/A | Transformerless | Pure Sine | Parallel Capability | |
| APC2024NC | 2000 W | 24 Vdc | 120 Vac | 120 Vac | 30 A | Yes | Pure Sine | ||
| MSW2524NC | 2500 W | 24 Vdc | N/A | 120 Vac | N/A | Transformerless | Modified Sine | Parallel Capability | |
| APC3024NC | 3000 W | 24 Vdc | 120 Vac | 120 Vac | 50 A | Yes | Pure Sine | In Stock | |
| APC3048NC | 3000 W | 48 Vdc | 120 Vac | 120 Vac | 30 A | Yes | Pure Sine | ||
| APC3012E | 3000 W | 12 Vac | 230 Vac | 230 Vac | 75 A | Yes | Pure Sine | In Stock | |
| OPS3024NC | 3000 W | 24 Vdc | N/A | 120 Vac | N/A | Transformerless | Pure Sine | Parallel Capability | |
| APC3048D | 3000 W | 48 Vdc | 240 Vac | 120/240 Vac | 30 A | Yes | Pure Sine | ||
| HP3048E | 3000 W | 48 Vdc | 230 Vac | 230 Vac | 20 A | Yes | Pure Sine | ||
| UL3012NC | 3000 W | 12 Vdc | 120 Vac | 120 Vac | 120 A | Yes | Pure Sine | UL458 | In Stock |
| APV302440E | 3000 W | 24 Vdc | 230 Vac | 230 Vac | 35 A | Yes | Pure Sine | 40 A MPPT Solar Charger | |
| 3KHD | 3000 W | 48 Vdc | 230 Vac | 230 Vac | 25 A | Transformerless | Pure Sine | 4500 watt MPPT solar charger | |
| HPUL3524NC | 3500 W | 24 Vdc | 120 Vac | 120 Vac | 75 A | Yes | Pure Sine | CSA Listed | |
| APC4012NC | 4000 W | 12 Vdc | 120 Vac | 120 Vac | 120 A | Yes | Pure Sine | In Stock | |
| OPS4024NC | 4000 W | 24 Vdc | N/A | 120 Vac | N/A | Transformerless | Pure Sine | Parallel Capability | |
| APC4012D | 4000 W | 12 Vdc | 240 Vac | 120/240 Vac | 120 A | Yes | Pure Sine | ||
| APC4012S | 4000 W | 12 Vdc | 120 Vac | 120/240 Vac | 60 A | Yes | Pure Sine | ||
| HPUL4524NC | 4500 W | 24 Vdc | 120 Vac | 120 Vac | 65 A | Yes | Pure Sine | CSA Listed | |
| APC4812NC | 4800 W | 12 Vdc | 120 Vac | 120 Vac | 140 A | Yes | Pure Sine | ||
| APV502480E | 5000 W | 24 Vdc | 230 Vac | 230 Vac | 60 A | Yes | Pure Sine | ||
| APV504880D | 5000 W | 48 Vdc | 240 Vac | 120/240 Vac | 80 A | Yes | Pure Sine | ||
| APC6048D | 6000 W | 48 Vdc | 240 Vac | 120/240 Vac | 65 A | Yes | Pure Sine | ||
| HP604880E | 6000 W | 48 Vdc | 230 Vac | 230 Vdc | 65 A | Yes | Pure Sine | 80 A MPPT Solar Charger | |
| APC6048NC | 6000 W | 48 Vdc | 120 Vac | 120 Vac | 65 A | Yes | Pure Sine | ||
| APC6024D | 6000 W | 24 Vdc | 240 Vac | 120/240 Vac | 85 A | Yes | Pure Sine | ||
| APC7048E | 7000 W | 48 Vdc | 230 Vac | 230 Vac | 100 A | Yes | Pure Sine | ||
| HP8024D | 8000 W | 24 Vdc | 240 Vac | 120/240 Vac | 120 A | Yes | Pure Sine | ||
| HP8048D | 8000 W | 48 Vdc | 240 Vac | 120/240 Vac | 80 A | Yes | Pure Sine | ||
| HPV802480E | 8000 W | 24 Vdc | 230 Vac | 230 Vac | 120 A | Yes | Pure Sine | 80 A MPPT Solar Charger | |
| HP10048D | 10000 W | 48 Vdc | 240 Vac | 120/240 Vac | 100 A | Yes | Pure Sine | ||
| HP10024D | 10000 W | 24 Vdc | 240 Vac | 120/240 Vac | 150 A | Yes | Pure Sine | ||
| HP10048E | 10000 W | 48 Vdc | 230 Vac | 230 Vac | 100 A | Yes | Pure Sine | ||
| HP12048E | 12000 W | 48 Vdc | 230 Vac | 230 Vac | 120 A | Yes | Pure Sine | In Stock | |
| HP12048D | 12000 W | 48 Vdc | 240 Vac | 120/240 Vac | 120 A | Yes | Pure Sine | Conforms to UL 1741 | In Stock |
| APC5012NC | 5000 W | 12 Vdc | 120 Vac | 120 Vac | 140 A | Yes | Pure Sine | ||
| APC3012NC | 3000 W | 12 Vdc | 120 Vac | 120 Vac | 100 A | Yes | Pure Sine | In Stock | |
| HP15048D | 15000 W | 48 Vdc | 240 Vac | 120/240 Vac | 150 A | Yes | Pure Sine | ||
| HPV804880D | 8000 W | 48 Vdc | 240 Vac | 120/240 Vac | 80 A | Yes | Pure Sine | 80A MPPT Solar Charger | |
| APC5036NC | 5000 W | 36 Vdc | 120 Vac | 120 Vac | 65 A | Yes | Pure Sine | ||
| APC4024NC | 4000 W | 24 Vdc | 120 Vac | 120 Vac | 60 A | Yes | Pure Sine | ||
| APC4048NC | 4000 W | 48 Vdc | 120 Vac | 120 Vac | 30 A | Yes | Pure Sine | ||
| APC1024E | 1000 W | 24 Vdc | 230 Vac | 230 Vac | 20A | Yes | Pure Sine | In Stock |
