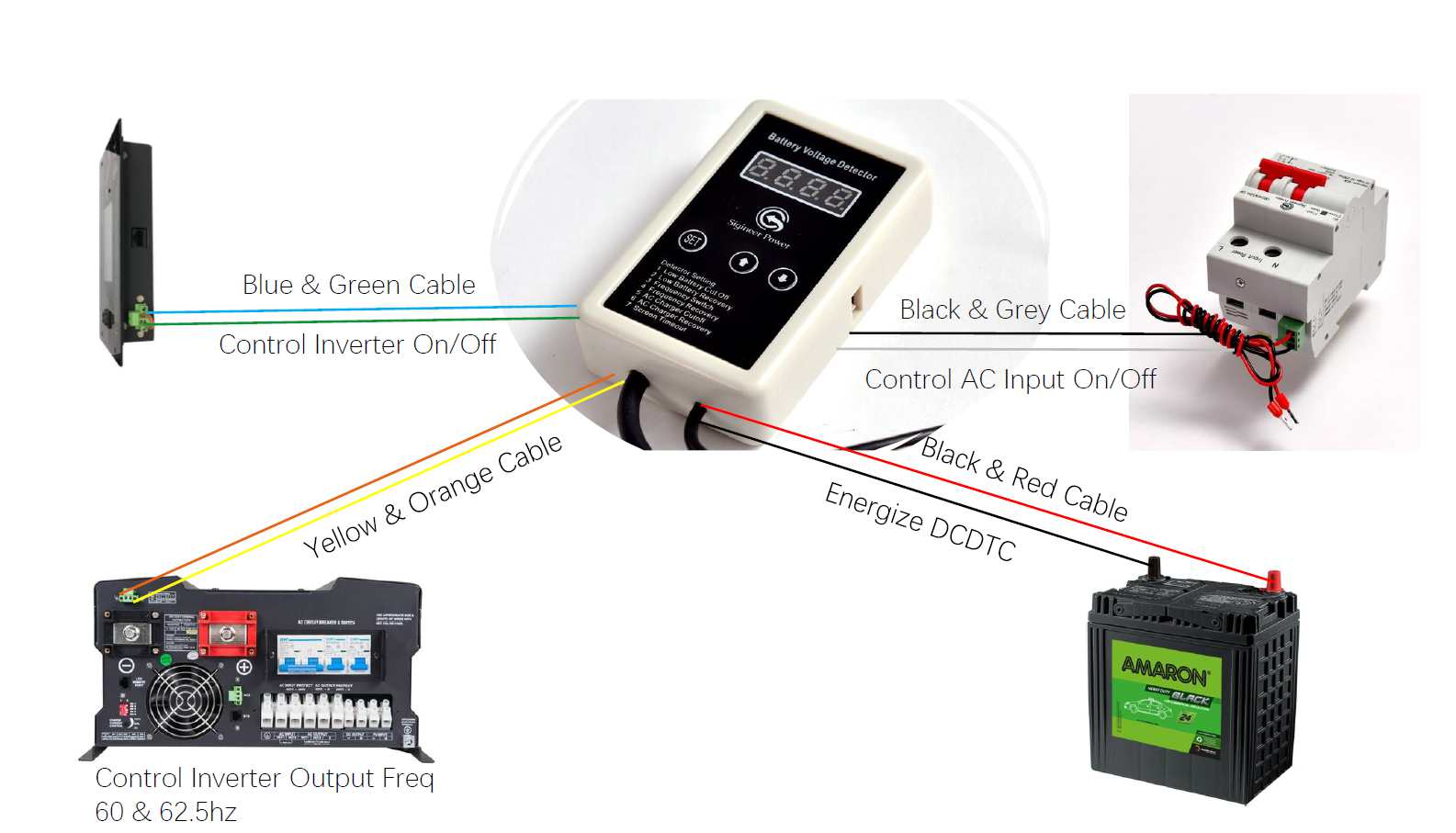

DCDTC installation

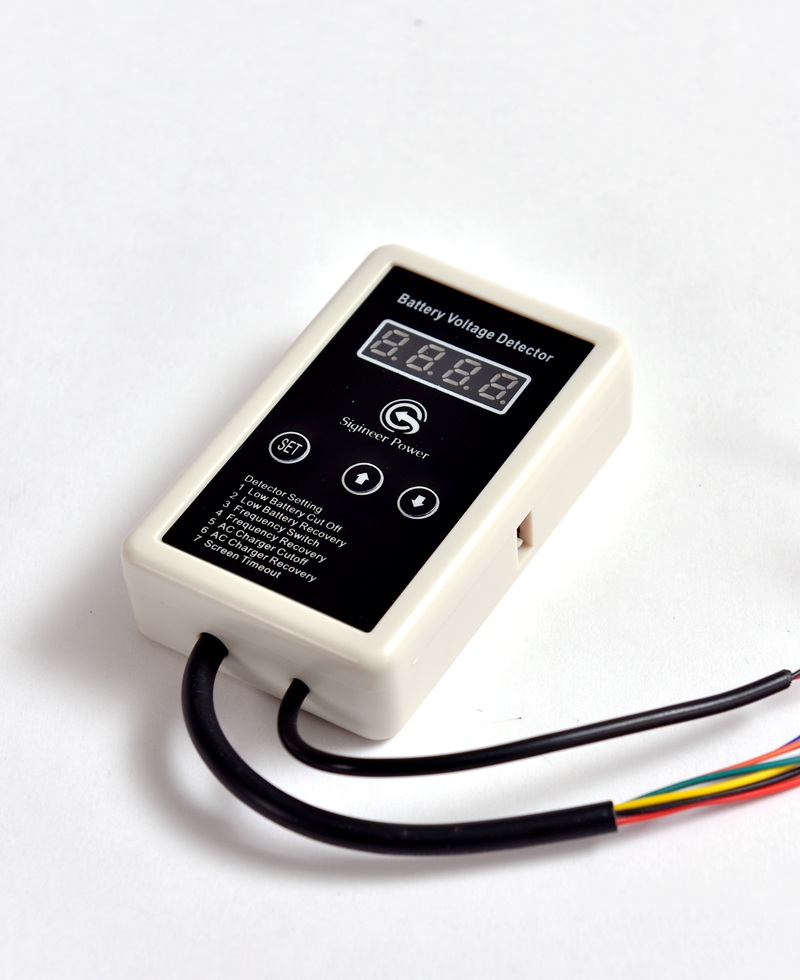

DC Voltage Detector

$90.00

Model #: DCDTC

Free shipping to the USA, Canada & Puerto Rico by courier.

This DC voltage detector work with Sigineer Power’s RLCD and circuit breaker. It can remotely shut off battery charger, inverter and change the inverter output freq.

SKU: DCDTC Category: Power Inverter Accessories
  • Description
  • FEATURES
  • Manual
  • Reviews (0)

Description

This model will be back in stock on Sep 25th.



DC Voltage Detector Operation Manual

Mode #: DCDTC

This Sigineer Power’s DC Voltage Detector is designed with 3 relays which will close or open at preset battery voltage to trigger the operation of Inverter Charger RLCD, 60/62.5hz inverter frequency switch and AC circuit breaker with remote control.

All the 3 relays are rated at 2 amps and operate within designed amp/voltage.

On the top cover, there are three buttons: “Set””Up”and ”Down”.

On the side, there is a 2-pin DIP switch, the nominal battery voltage is set through DIP switches , 0,0 for 12v / 1,0 for 24v / 1,1 for 48v



The voltage setting comes in increments of 0.1Vdc.

Detector SettingRelay StatusConnection12V24V48V
1 Low Battery CutoffRelay A gets from Close to OpenDry Contact on RLCD6-17v13-34V26-68V
2 Low Battery RecoveryRelay A gets from Open to CloseDry Contact on RLCD7-18V14-35V28-70v
3 Frequency SwitchRelay B gets from Open to Close60/62.5hz Dry Contact7-18V14-35V28-70V
4 Frequency RecoveryRelay B gets from Close to Open60/62.5hz Dry Contact6-17V13-34V26-68V
5 AC Charger CutoffRelay C gets from Close to OpenRemote Control of AC Input Breaker7-18V14-35V28-70V
6 AC Charger RecoveryRelay C gets from Open to CloseRemote Control of AC Input Breaker6-17V13-34V26-68V
7 Screen Timeout10 to 60 mins, 99 represents constant on
8 Audio Alarm99 represents constant on, 00 presents off
RelayWire ColorStatueFunction
ABlue+GreenConstantly CloseConnects to dry contact at Inverter Remote LCD, gets open at preset voltage to power off inverter.
BYellow+OrangeConstantly OpenConnects to 60/62.2hz frequency switch dry contact, get closed at preset voltage to change frequency to 62.5Hz.
CBlack+WhiteConstantly CloseConnects to circuit breaker remote control cables, opens at preset voltage to cut off AC input for charging.
CBlack+RedConstantly OpenReserved for users.

Note:

1: The low battery alarm is 0.5V higher than  “1 Low Battery Cutoff” at 12Vdc, 1Vdc at 24Vdc and 2Vdc at 48Vdc.

The high voltage alarm is 0.5V lower than “5 AC Charger Cutoff”, at 12Vdc, 1Vdc at 24Vdc and 2Vdc at 48Vdc.

The audio alarm is controlled by setting “1” and “5” only.

2: Setting 3 is lower than setting 5 in software. There is a locking between 1&2, 3&4, 5&6. Setting 2 is 1V lower than 1. Setting 3 is 1V higher than 4. Setting 5 is 1V higher than 6.

3: Low voltage alarm, beeps 0.5s at every 5 seconds; high voltage alarm, beeps 0.5s at every 2 seconds;

4: Setting 7(Screen Timeout) is for LED light time, resettable value from 10, 20, 30, 40, 50, 60 minutes to 99 which represent constantly light.

5: For relay C, there are three cables, white, black and red, the users can choose to two of them to flexibly control our circuit breaker.



DC Voltage Detector Manual



FEATURES

Intelligent control of inverter charger operation

Narrow  inverter operation voltage range for specific applications

Output 60/62.5hz freq switch signal for AC coupled systems

Manual

Dc Voltage Detector Manual
