Description
48V 400AH 20KWH Lithium Battery ESS with 10KW 120/240V Inverter & 200A MPPT Solar Charger
$18,000.00
Model #:RE10K20
Free shipping to 48 states of continental USA.

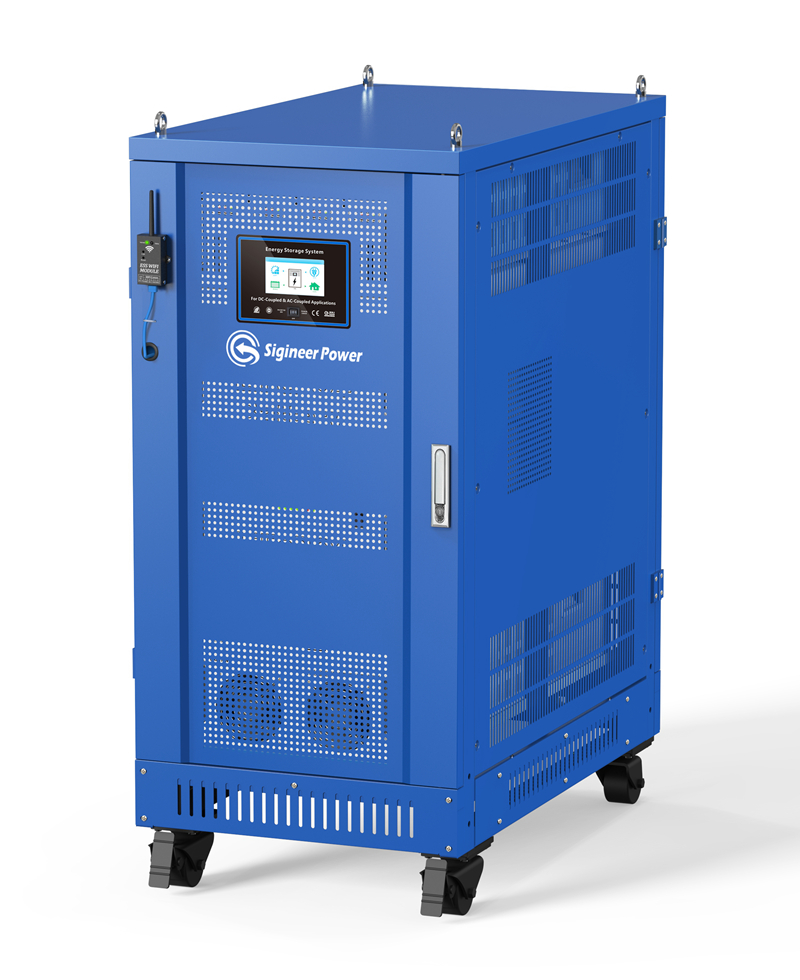

This RE10K20 power system includes a 10KW 48V to 120/240vac inverter charger, 2 pcs of 51.2V 200AH LFP batteries and 4 pcs of 50A MPPT solar charger with max PV input of 150vdc.
It includes all components in a compact cabinet, and work virtually as a turn key solution, all you have to do is wire the PV panel and AC input and output, then you are ready to go.
It is suitable for applications with energy storage such as renewable-energy storage for homes and grids, telecom tower, UPS backup systems.
All these batteries are fully tested under stringent standards for resistance, capacity and voltages. They no longer help lower prices but also reduces carbon footprint.
Our power stations come with 3-year warranty and lifespan over 3,500 cycles.
Pls allow 45 days for production and 45 days for seaway shipping.
Out of stock
FEATURES
3.2V LiFePO4 Lithium prismatic cell,
Long cycle life 3500 times plus on 80% DOD @ 25℃
Customized charger for the maximization of system life
High reliability intelligent BMS to communicate with inverter.
Active cell balancing technology BMS system
48Vdc output, suitable for home energy storage system, communication stations and other applications
Standard communication CAN & RS485 port, supports remote monitor etc
SPECIFICATIONS
Sigineer Power ESS Spec Sheet.xls
| Model # | ESS6048D200120 | ESS12048D500240 | ESS12048D600240 | ESS15048D900240 | LFP48500240 | LFP4810000480 | LFP4818000480 |
|---|---|---|---|---|---|---|---|
| Battery Voltage(Vdc) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
| Battery Capacity(AH) | 200 | 500 | 600 | 900 | 500 | 1000 | 1800 |
| Battery Energy (KWH) | 10.24 | 25.6 | 30.72 | 46.08 | 25.6 | 51.2 | 92.16 |
| Inverter Model | HP6048D 6KW 120/240Vac | HP12048D 12KW 120/240Vac | HP12048D 12KW 120/240Vac | HP15048D 15KW 120/240Vac | N/A | N/A | N/A |
| MPPT Solar Charger(MAX PV Input 150V) | 60A*2 | 60A*4 | 60A*4 | 60A*4 | 60A*4 | 60A*8 | 60A*8 |
| Unit Size (H*W*D) mm | 730*560*935 | 1760*560*935 | 1520*560*935 | 1760*560*935 | 1760*560*935 | 1760*1100*935 | 1760*1100*935 |
| Shipping Size (H*W*D) mm | 980*690*1005 | 1940*690*1005 | 1700*690*1005 | 1940*690*1005 | 1940*690*1005 | 1940*1300*1005 | 1940*1300*1005 |
| Net Weight KG | 200 | 550 | 550 | 700 | 450 | 900 | 1100 |
| Gross Weight KG | 220 | 600 | 600 | 750 | 500 | 950 | 1150 |
