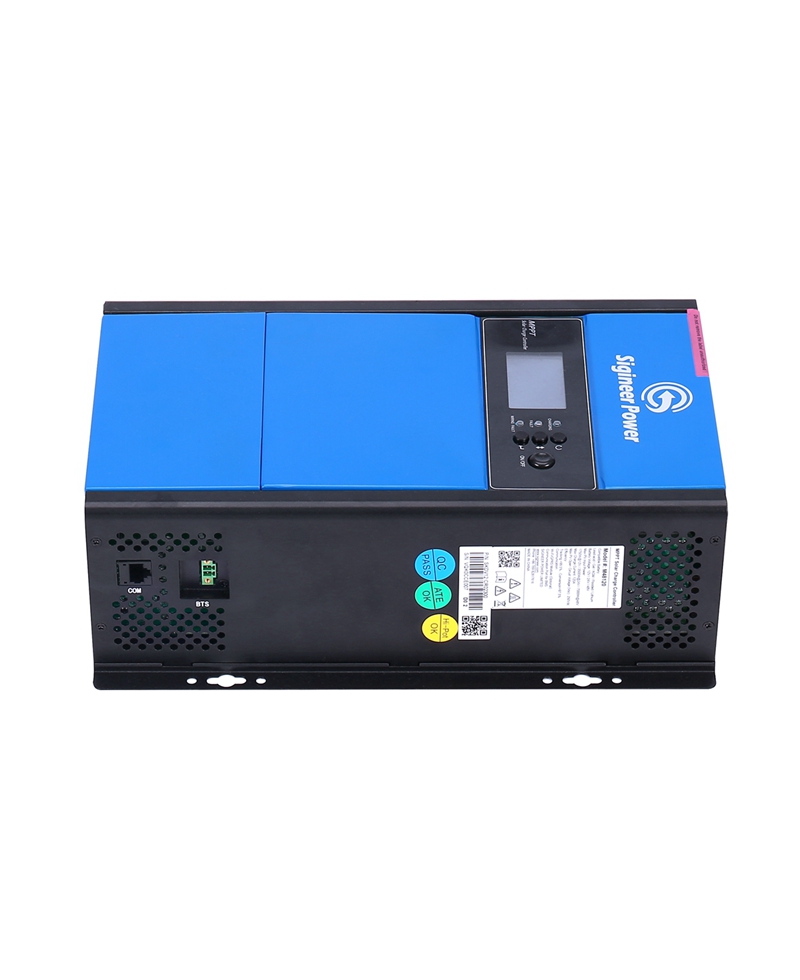

The M48120 solar charger controller works at 12V, 24V and 48vdc, accepts PV input VOC up to 250V.
It has two strings of 60A MPPT input and various battery charging algorithms, intelligent discharge control, RS485 communication with our solar inverters to expand the solar charger capacity.
It also supports PC software remote monitoring and Wi-Fi module for APP remote monitoring.
The M48120 MPPT solar controller is an advanced Maximum Power Point Tracking (MPPT) battery charger for standalone photovoltaic (PV) systems up to 7kW. The controller provides high peak efficiency of 99% and consumes significantly less power compared with competing MPPT controllers.
The solar charger controller works at 12V, 24V, and 48vdc, it accepts wide PV input rang up to 250V.
It has two separate 60A MPPT trackers, they can also work in parallel to accept a max of 7KW input power from a single solar array at 120A, for more details, please refer to the wiring diagram.
It has input overcurrent protection for both 60A trackers, when the PV array produces more than what the controller is rated for, it will limit the input current.
Tt has various battery charging algorithms, intelligent discharge control, RS485 communication for convenient integrated management and secondary development. It also can be remote monitored via Wi-Fi or GPRS.
It can communicate with the built-in solar charger of Sigineer M Series inverters(M3024NC/M3048NC/M6048D/M12048D) to expand its solar charging capacity and synchronize the charging stage for lithium batteries.
This solar charger package doesn’t include any Wi-Fi or GPRS modules, which are sold separately.
The solar charger is designed with positive ground, only the positive terminal can be bonded to the ground.
In a negative ground system, the charger should be left either ungrounded or bonded to a separate ground cable.
Connecting its positive terminal to the negative ground cable will damage it permanently, and it is not covered under warranty.
The Wi-Fi module isn’t offered for free with the solar charger, it is sold separately.
FEATURES
12V/24V/48V Auto work
Stackable Operation
Capable of communicating with inverter solar charger
Multi-stage charging optimizes battery lifespan
MPPT tracking efficiency >99.5%, peak conversion efficiency 98%
Compatible with Gel, AGM, flooded, sealed lead acid and lithium battery
Easy installation and commissioning
Ultra Fast Maximum Power Point Tracking, conversion efficiency up to 99%, converter efficiency up to 98%
Input Overcurrent Protection.
120A Charging Capability
Maximum PV open circuit input voltage up to 250Vdc, supports 7000W PV input
Extensive Networking and Communications Capabilities
Smart Charging Current limitation to prevent overcharging in the event of excessive PV production
Controllers can be unlimitedly paralleled and synchronize their charging stages
Smart charge algorithm: fast charge ,constant charge ,floating charge)
LCD allows access of operation status & spec modifications
SPECIFICATIONS
Solar System Voltage: 12V/24V/48V
PV operating voltage: 15 ~75Vdc@12V / 30~150Vdc@24V / 60~245Vdc@48V
Max. PV open circuit voltage: 250Vdc
Max. PV input power: 1750W@12V 3500W@24V 7000W@48V
Number of MPPT trackers: 2
Max. charging current: 120A
Self Consumption: 5W
MPPT Efficiency: 99.5%
Conversion Efficiency: 97.5%
Protection: High voltage, high temperature protection
Battery Charging
Battery Type: Sealed, AGM, Gel, Flooded, Lithium, User define
Charging Algorithm: Bulk, Absorption, Float, Equalize
Bulk charge voltage: Sealed:14.4V AGM Gel:14.1V Flooded:14.6V User define:12-14.6V
(For 24V system, total voltage*2; for 48V system, total voltage*4)
Float charge voltage: Sealed/Gel/AMG:13.7V Flooded:13.6V User define :12-14.6V
(For 24V system, total voltage*2; for 48V system, total voltage*4)Temperature compensation: -5mV/℃ with BTS(Optional)
Communication Port: USB
Net weight: 4.2KG/9.2lbs
GW: 5KG/11lbs
Unit Dimensions: 320*200*105mm/11.8*8.6*4.1″
Package Dimensions:390*290*200mm/15.4*11.4*7.9″
Cooling: Fan cooling
Enclosure: IP20
Ambient Temperature: -20~55℃/-4~131°F
Storage Temperature: -40℃~+60℃/-40~131°F
Humidity 100% non-condensing
