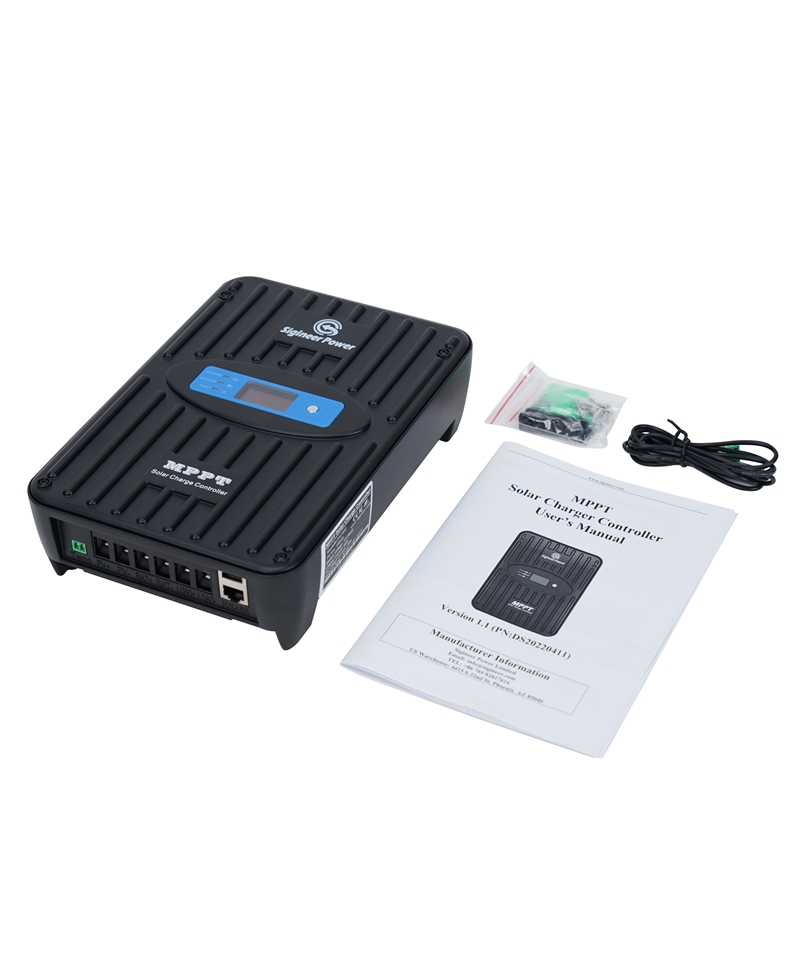

12V 24V 60 Amp MPPT Solar Charger Controller LED PV 150V Negative Ground

(2 customer reviews)

$199.00

Model #: DS2460

Free shipping to the USA, Canada & Puerto Rico by courier.



The DS2460 solar charger controller features LED screen, unlimited parallel capability, automatic battery voltage recognition from 12Vdc to 24vdc, wide PV input range up to 150V, various battery charging algorithms, intelligent discharge control, RS232 / LAN communication function, etc.

SKU: DS2460 Category:

Description

This is DS2460 is Sigineer Power’s new  60A MPPT solar charger controllers.
It is designed without fans and uses its aluminum body for heat dissipation, thus the operation noise is effectively reduced to 10dB and the failure of fan is permanently eliminated.

To meet the increasing demand for a more cost-effective version solar charger for 12V/24V battery systems, our engineers redesigned the PCBs by narrowing the PV input range to 150Vdc, while keeping all other fancy features unchanged.
It can automatically detect 12V/24V systems and works with various battery options such as GEL and Lithium.
Pair this charge controller with the WiFi module to view your system’s performance in real-time on APP and make parameter changes straight from your smart device.

The DS2460 solar charger is designed with negative ground, only the negative terminal can be bonded to the ground.
In a positive ground system, the charger should be left either ungrounded or bonded to a separate ground cable.
Connecting its negative terminal to the postive ground cable will damage it permanently, and it is not covered under warranty.

  1. Charging status / Load output status / Error LED
  2. Function button
  3. Digital OLED display
  4. Temperature sensor terminals
  5. Dual RJ45 serial communication ports
  6. Input and output terminals (PV+/PV-/BAT+/BAT-/LOAD+/LOAD-)
  7. Dedicated for grounding wire
  8. Reverse fixing hole
  9. Mounting holes for positively fixed fittings
  10. Terminal cover plate

FEATURES

Innovative MPPT technology with high tracking efficiency up to 99.5% and peak conversion efficiency of 98%.
*Automatically detects 12V/24VDC system voltages.
*Works with deep Cycle Sealed, Gel, Flooded, Lithium battery and customized batteries
*Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
*LCD screen for displaying system operation information, customizable parameters, and error codes.
*Features diverse load control; also capable of charging over-discharged lithium batteries.
*Dual RS485 communication ports, support for unlimited parallel communication.
*Four load control modes: ON/OFF, PV voltage control, Dual Time control, PV+Time control.
*IP43 protection, natural-cooling.
*Support PC and APP (Android & iOS) monitoring on WiFi Module.
*CE, RoHS, FCC certifications approved.

SPECIFICATIONS

Charger Model #DS2460
Rated PV power for 12V system780W
Rated PV power for 24V system1560W
Rated PV power for Li-ion756W-1512W
Rated Charge current 60A
Rated DC output current30A
Minimal Recommended breaker100A
N.weight(KG)2.35
G.weight (KG)2.78
Product Size (mm)245×170×63.5
Packing Size(mm)334×225×123



Controller PropertiesMPPT (maximum power point tracking)
MPPT efficiency≥99.5%
Standby power0.5W~1.2W
System voltageAutomatic recognition
Heat-dissipating methodNatural cooling(Without fans).
12V system 　 battery identification voltage range9VDC~15VDC(Lead acid)
24V system battery identification voltage range18VDC~30VDC(Lead acid)
Li-ion battery identification voltage range8VDC~30VDC(Default), ≤ 30VDC(Optional activation function)
Max.PV input voltage(VOC)150VDC(default)
Min.Vmpp VoltageBattery voltage + 2V
Start the charge voltage pointBattery voltage + 3V
Low input voltage protection pointBattery voltage + 2V
PV Over voltage protection pointDC100V
PV Over voltage recovery pointDC95V
Selectable Battery TypesSealed lead acid, Gel battery, Flooded. Li-ion
Temperature Compensation-3mV/℃/2V (default)
Charge Method 3-Stage: constant current(fast charging)-constant voltage-floating charge
Output Voltage Stability Precision≤ ±0.2V
DC output Load voltageThe same as the battery voltage
Load control modeOn\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode
Low voltage protectionThe default protection point is 10.5V, and it is restored to 11V (can be set)
Setup modePC software /APP/ controller display
Display modeHigh-definition LCD segment code backlight display
Communication mode8-pin RJ45 port/RS485/support PC software monitoring/ support WiFi module to realize APP cloud monitoring
Protect functionInput-output over \ under voltage protection, Prevention of connection reverse protection,battery shedding protection etc.
Operation Temperature-20℃~+50℃
Storage Temperature -40℃~+75℃
IP(Ingress protection)IP21
Noise≤ 10dB
Altitude0~3000m
Max. connection size28mm 2

DOWNLOADS

DS 2460 12V 24V 60 AMP WATERPROOF OUTDOOR MPPT SOLAR CHARGE CONTROLLER Manual

Parallel Operation Manual
