Description











The Sigineer Power ETL certificate (control # 5023256) can be verified by the manufacturer name of “DONGGUAN SIGINEER POWER ELECTRICAL TECHNOLOGY CO., LTD” in “Intertek Directory of Listed Products Search” from the below link: INTERTEK Website



This 6,000 watt solar inverter is an integration of a 48V to 120/240V 12KW off grid power inverter, an 60A AC charger, 800A MPPT solar charge controller and a transfer switch.
It is built with state-of-the-art inverter technology with a powerful DSP and allows users to change a wide range of specs such as AC output voltage, frequency, power priority, low/high battery cutoff, charging profiles, etc.

FEATURES

• UL1741 & CSA22.2 Certified

• Pure Sine Wave AC Output 6000 Watt 120/240Vac Split Phase
• 18000W Power Surge for 5 Seconds
• 80A MPPT Solar Charger with PV Voc 250V
• BMS Port For Communicating with Compatible LiFePO4 batteries
• AC/Battery/PV Priority Selector
• Smart AC to DC Battery Charger 100 Amp
• 10ms Typical Transfer Time
• Marine Coated and Protected
• Remote Monitor by LCD Panel, Computer Software or APP Via Wi-Fi/GRPS Module
• Load Detection on Both Hotlines
• Automatic Generator Start

SPECIFICATIONS

Inverter Output Specifications:
•Continuous Output Power: 6000 Watts
•Surge Rating: 18000 Watts (5 Seconds)
•Output Voltage: 104/208V, 110/220V, 115/230V, 120/240Vac (Resetable)
•Nominal Efficiency: 91% (Peak)
•Line Mode Efficiency: >95%
•Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
•Typical Transfer Time: 10ms (Max)
•THD: <10%

DC Input Specifications:
• Nominal Input Voltage: 48.0Vdc/
• Low Battery Cutoff: 36.0-52Vdc / 5%-50% SOC
• Low Battery Alarm: 38-54Vdc / Low Battery Cutoff SOC+5%
•DC to AC Transfer: 44-54V / 5%-50% SOC
•AC to DC Transfer in : 44-58V / 60%-100% SOC
• High Voltage Cutoff: AGM:60V/FLD:62V/ USE mode: C.V+4V
• High Voltage Recovery: 58V
———————————————-
• Idle Consumption: 120 Watts
• Power Saver Mode Idle Consumption:30 Watts

Charger Specifications:
• Ac Input Voltage For Charger: Nominal 240Vac (154-260Vac)
• Output DC voltage: 48-58.4V
• AC Charger Rate: 60Amp
• Solar Charger Rate: 80Amp PV Voc 250V
• Max Combined Charge Rate: 140Amp
• Over Charge Protection Shutdown: 62.4V
• Adjustable charge current: 0-100%
• Four Stage Smart Charger

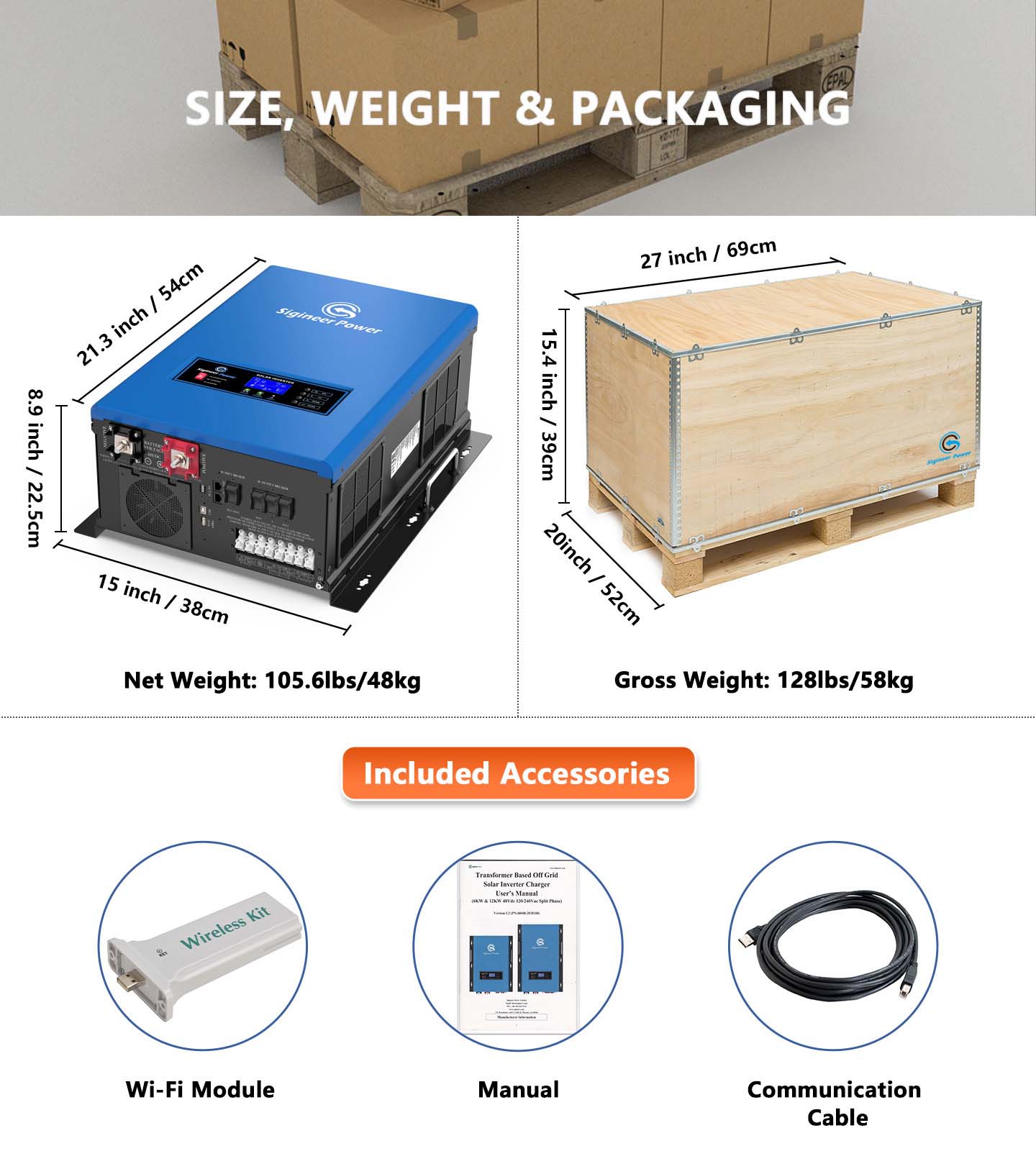

Dimensions:
•Unit Weight: 99lbs/45KG
•Unit Size L x W x H: 540*360*218mm/21.2*14.2*8.7″
•Shipping Weight: 128lbs/58KG
•Shipping Size: L x W x H:690*520*390mm/27*20*16″

It allows remote monitoring of the inverter system by Wi-Fi module or GPRS module on APP. There is a free Wi-Fi module packed with the solar power inverter for home.
