48V 600AH 30KWH Lithium Battery ESS 15KW Inverter Charger & 240A MPPT Solar Charger

$22,000.00

Model #:RE15K30

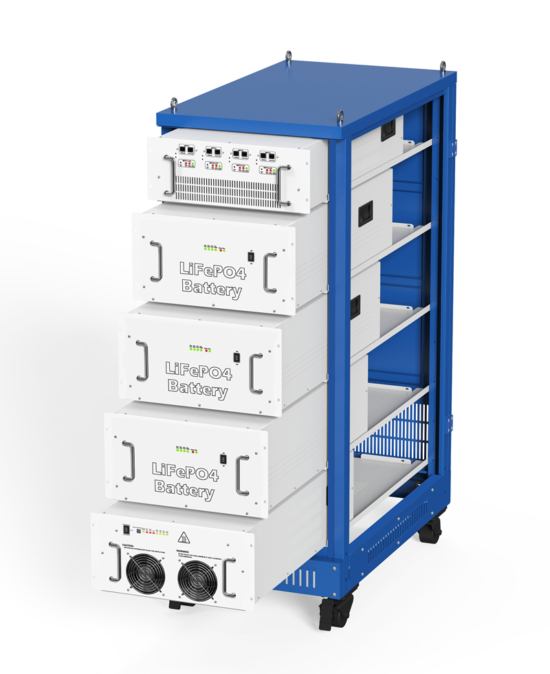

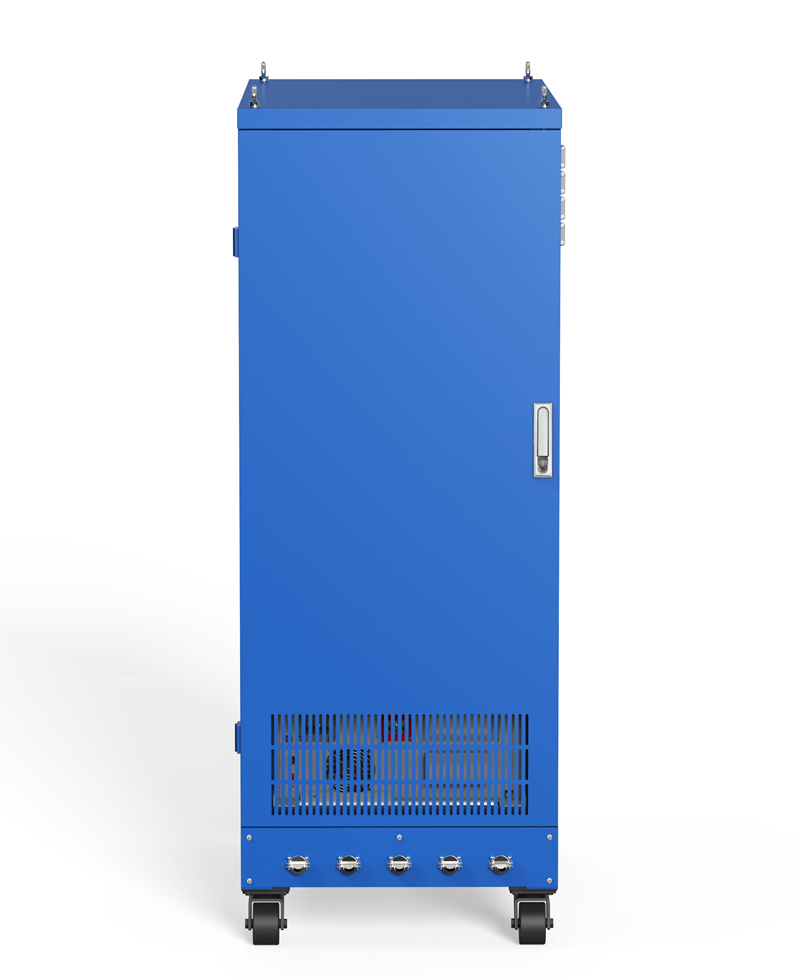

This RE15K30 ESS power system includes a 15KW 48V to 120/240vac inverter charger, 51.2V 600AH LFP batteries and 240A MPPT solar charger with max PV input of 150vdc.

It includes all components in a compact cabinet, and work virtually as a turn key solution, all you have to do is wire the PV panel and AC input and output, then you are ready to go.

It is suitable for applications with energy storage such as renewable-energy storage for homes and grids, telecom tower, UPS backup systems.

All these Power station are fully tested under stringent standards for resistance, capacity and voltages. They no longer help lower prices but also reduces carbon footprint.

Our power stations come with 3-year warranty and lifespan over 6000 cycles.

Out of stock

SKU: RE15K30 Categories: ,

Description

This RE15K30 ESS power system includes a 15KW 48V to 120/240vac inverter charger, 51.2V 600AH LFP batteries and 240A MPPT solar charger with max PV input of 150vdc.

It includes all components in a compact cabinet, and work virtually as a turn key solution, all you have to do is wire the PV panel and AC input and output, then you are ready to go.

It is suitable for applications with energy storage such as renewable-energy storage for homes and grids, telecom tower, UPS backup systems.

All these Power station are fully tested under stringent standards for resistance, capacity and voltages. They no longer help lower prices but also reduces carbon footprint.

Our power stations come with 3-year warranty and lifespan over 6000 cycles.

FEATURES

3.2V LiFePO4 Lithium prismatic cell,
Long cycle life 3500 times plus on 80% DOD @ 25℃
Customized charger for the maximization of system life
High reliability intelligent BMS to communicate with inverter.
Active cell balancing technology BMS system
48Vdc output, suitable for home energy storage system, communication stations and other applications
Standard communication CAN & RS485 port, supports remote monitor etc

SPECIFICATIONS

Sigineer Power ESS Spec Sheet.xls

Model #ESS6048D200120ESS12048D500240ESS12048D600240ESS15048D900240LFP48500240LFP4810000480LFP4818000480
Battery Voltage(Vdc)51.251.251.251.251.251.251.2
Battery Capacity(AH)20050060090050010001800
Battery Energy (KWH)10.2425.630.7246.0825.651.292.16
Inverter ModelHP6048D 6KW 120/240VacHP12048D 12KW 120/240VacHP12048D 12KW 120/240VacHP15048D 15KW 120/240VacN/AN/AN/A
MPPT Solar Charger(MAX PV Input 150V)60A*260A*460A*460A*460A*460A*860A*8
Unit Size (H*W*D) mm730*560*9351760*560*9351520*560*9351760*560*9351760*560*9351760*1100*9351760*1100*935
Shipping Size (H*W*D) mm980*690*10051940*690*10051700*690*10051940*690*10051940*690*10051940*1300*10051940*1300*1005
Net Weight KG2005505507004509001100
Gross Weight KG2206006007505009501150

DOWNLOADS

Sigineer Power ESS Manual
