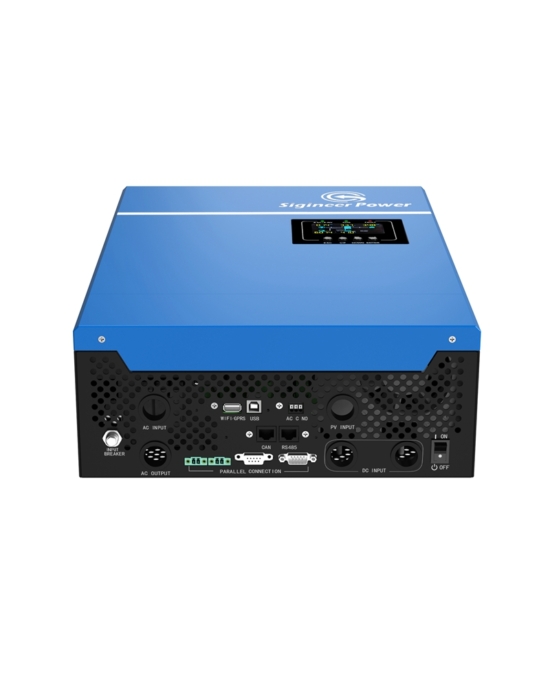

3000W Off Grid Solar Inverter 80A MPPT Solar Charger DC 48V to 110 120V

$959.00

Model #: M3048BP

Free shipping to the USA, Canada & Puerto Rico by courier.

This 3000 watt 48v to 120V solar inverter is a combination of solar inverter, battery charger and AC auto-transfer switch with a peak DC to AC conversion efficiency of 90%.

Features include batteryless operation, stackable capability, wide PV input range of 250Voc, sophisticated protections.

Out of stock

SKU: M3048BP Category: Tags: , ,

Description

This 3000W solar inverter is off grid, transformerless, designed with for 120Vac power systems.
It converts 48Vdc battery to 120Vac single phase power (adjustable to 100V 110V as well).
Its 80A MPPT solar charger accepts PV input from 120Vdc to 250Vdc, the nominal PV input power is 4000 watts.
The 40A utility charger allows users to charge batteries from a utility or generator as well.

It supports batteryless operation to convert PV power directly to support loads and use utility power as backup, this help users to reduce initial investment on the solar system.

When the battery is fully discharge, the M3048BP inverter will not shut off its solar charger to discharge batteries, it will convert the PV input power to drive the loads.

Its LCD allows users to change virtually all the specs of the inverter, including low/high voltage alarm/cut off, charging voltages, charging current,  AC output voltage and freq, etc. It can be stacked up to 6 pcs to increase power or form three-phase 208Vac.

Another important feature is that it can operate without battery connected,

Its versatile stacking feature allows the 3KW solar inverter to be stacked up to 6 pcs.

The highly programmable LCD menu allows users to set a wide range of inverter specs such as
1 AC output Frequency :50hz or 60hz
2 Power priority: Solar, battery, or Utility
3 Ac Input voltage range
4 Charging current & voltage
5 Power saver mode
6 Auto restart after overload or over temp

It virtually allows users to change all of its spec within its range.
It allows remote monitoring by WiFi module or GPRS module.
It has BMS to communicate with our lithium battery powerwalls.
Contact us at info@sigineer.com to learn more.

FEATURES

• Built-in 120-250Vdc 80A MPPT solar charge controller, max PV input 4000W
• 40A Smart AC charger
• Batteryless operation to save system investment
• High frequency transformer-less compact design & lightweight
• Pure sine wave AC 100V 110V 120V output with 50hz/60hz switch
• Parallel operation for power increase or 120/208V three phase output
• Parallel operation up to 6 units
• Optional Wi-Fi/ GPRS remote monitoring
• Optional RS485 communication with BMS (battery management system)
• Overload, short circuit, over discharge, battery reverse protection
• Dry Contacts for delivering signal about inverter operation status

SPECIFICATIONS

M3000H M5000H Off Grid Solar Inverter Charer Spec Sheet

MODEL #M3024NCM3048NCM5000H-48BP
Rated Power3000VA/3000W3000VA/3000W5000VA/5000W
Parallel CapabilityUp to 6 units for split phase or three phase
Remote MonitoringWiFiWiFiWiFi
Remote MonitoringGPRSGPRSGPRS
AC Input Voltage110/120 VAC110/120 VAC220/230/240 VAC
AC Input Voltage Range60-140Vac60-140Vac90-280Vac
Ac Input Frequency Range50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)110/120 VAC ± 5%110/120 VAC ± 5%220/230/240 VAC ± 5%
AC Input Breaker40A40A40A
AC Output Bypass Breaker40A40A40A
Nominal AC Output Power3000VA/3000W3000VA/3000W5000VA/5000W
Surge AC Output Power6000W (5 secs)6000W (5 secs)10000W (5 secs)
DC To AC Efficiency (Peak)0.930.930.93
Transfer Time10 ms(For Personal Computers) ; 20 ms(For Home Appliances)
Output WaveformPure Sine Wave
Battery Voltage24 VDC48 VDC48 VDC
CV & Float Charge voltage 24.0V~29.2V Settable 48.0V~58.4V Settable 48.0V~58.4V Settable
Maximum PV Array Power4500W4500W4500W
MPPT Range @ Operating Voltage30~115 VDC60~115 VDC120~430 VDC
Maximum PV Array Open Circuit Voltage145 VDC145 VDC450 VDC
Maximum Solar Charge Current80 A80 A100 A
Maximum AC Charge Current60 A40 A80 A
Maximum Charge Current(PV+AC)140 A120 A100 A
Idle Power50W50W50W
BMS PortAvailableAvailableAvailable
CAN PortAvailableAvailableAvailable
Inverter Dimension DxWxH455*295*130mm/17.9*11.6*5.1"
Pack Dimension DxWxH580*380*220mm/23*15*9"
Net Weight11.5KG/25.3lbs11.5KG11.5KG
Gross Weight13.5KG/29.8lbs13.5KG/29.8lbs13.5KG/29.8lbs
Humidity5% to 95% Relative Humidity (Non-condensing)
Operating Temperature‐10℃ to 55℃(-14℉to 131℉)
Storage Temperature‐15℃ to 60℃(5℉to 140℉)

Certificate&Manual

Manual

Solar inverter(Model # M5000H-48BP) CE certificate LVD

Solar inverter(Model # M5000H-48BP) CE certificate EMC



Manual

SERIES

Sigineer Pure Sine Inverter Charger Model List

Model #Rated PowerDC InputAC InputAC OutputCharger Amp
PSW71512NC1500 W12 Vdc120 Vac120 Vac35 A
PSW71524NC1500 W24 Vdc120 Vac120 Vac20 A
UL2012NC2000 W12 Vdc120 Vac120 Vac70 A
APC3012D3000 W12 Vac240 Vac120/240 Vac75 A
APC3012NC3000 W12 Vac120 Vac120 Vac75 A
APC3012D3000 W12 Vac240 Vac120/240 Vac75 A
APC3024NC3000 W24 Vdc120 Vac120 Vac50 A
APC3024D3000 W24 Vac240 Vac120/240 Vac75 A
M3000H-24LV3000 W24 Vdc120 Vac120 Vac60A+80A PV
APC3048NC3000 W48 Vdc120 Vac120 Vac30 A
APC3048D3000 W48 Vdc240 Vac120/240 Vac30 A
M3000H-48LV3000 W48 Vdc120 Vac120 Vac40A+80A PV
APC4012NC4000 W12 Vdc120 Vac120 Vac120 A
APC4012D4000 W12 Vdc240 Vac120/240 Vac120 A
M5000H-48BP5000W48 Vdc230 Vac230 Vac100A
APC5012NC5000 W12 Vdc120 Vac120 Vac140 A
APC6024D6000 W24 Vdc240 Vac120/240 Vac85 A
APC6048D6000 W48 Vdc240 Vac120/240 Vac65 A
M6000L-48SP6000 W48 Vdc240 Vac120/240 Vac60A+80A PV
HP10024D10000 W24 Vdc240 Vac120/240 Vac150 A
M12000L-48SP12000 W48 Vdc240 Vac120/240 Vac100A+120A PV
HP12048D12000 W48 Vdc240 Vac120/240 Vac120 A
HP15048D15000 W48 Vdc240 Vac120/240 Vac150 A
HP15096D15000 W96 Vdc240 Vac120/240 Vac70 A
HP18048D18000 W48 Vdc240 Vac120/240 Vac60 A
