3000 Watt 24 Volt to 100V 110V 120Vac DC to AC Pure Sine Power Converter Charger

Rated 5.00 out of 5 based on 2 customer ratings
(2 customer reviews)

$799.00

Model #: APC3024NC Click to view the whole line.

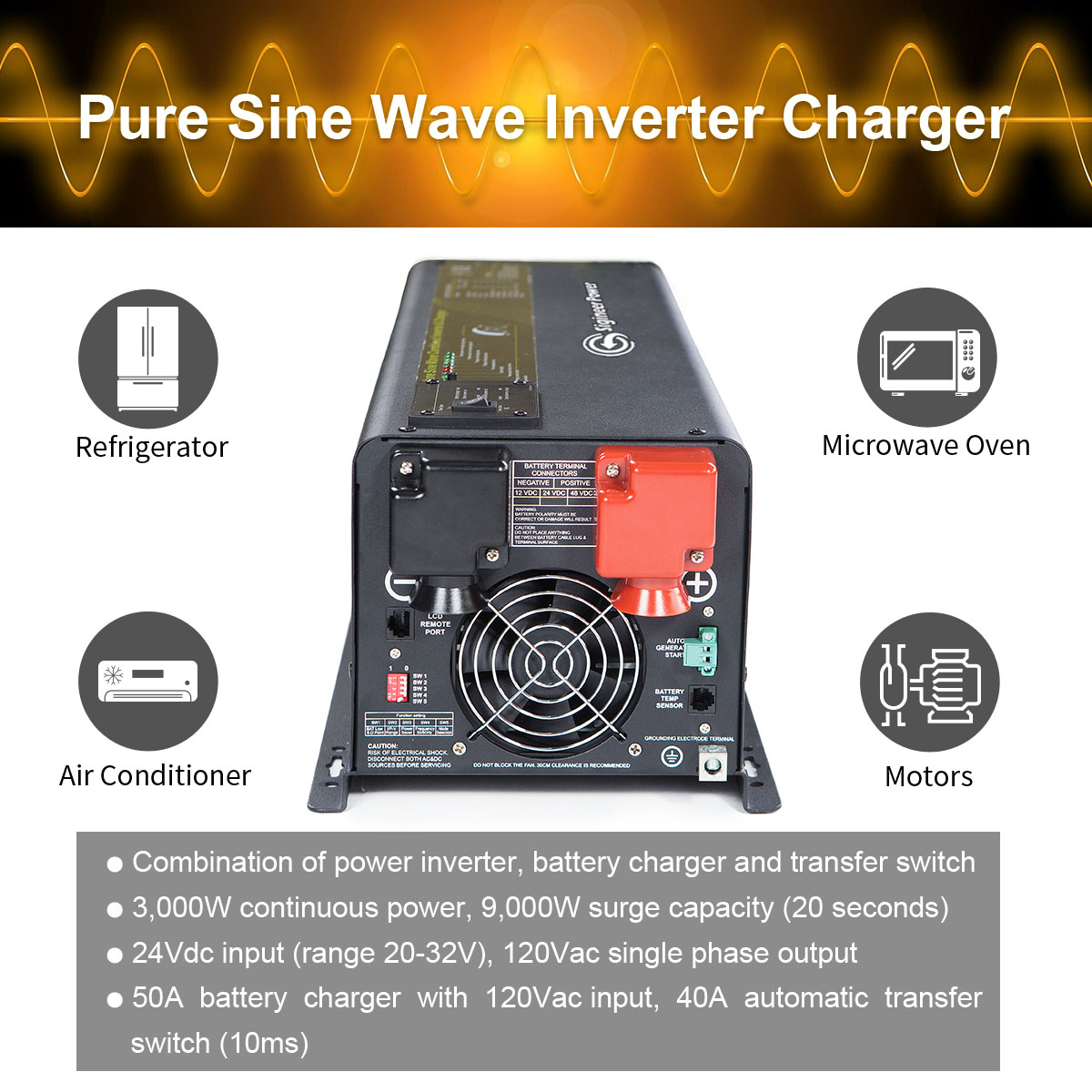

This 3000 watt 24v to 120 Volt Pure Sine Power Converter is a combination of power inverter, battery charger and AC auto-transfer switch with a peak DC to AC conversion efficiency of 88%.

 Features include 300% surge output, overload, short circuit, over-temperature, under & over voltage protections… VIEW FULL DESCRIPTION

SKU: APC3024NC Category: 24V Inverter Charger Tags: 120Vac, 24Vdc, 3000W, Inverter Charger, Pure Sine Wave, Single Phase, Transformer-based
  • Description
  • FEATURES
  • SPECIFICATIONS
  • DOWNLOADS
  • SERIES
  • Reviews (2)

Description

This Sigineer Power 3000 watt Pure Sine Power Converter changes 24 Volt to 120Vac Pure Sine Wave output.
This 3KW 24V Pure Sine Power Converter is more than just your daily inverter. It is a three-in-one product:
It is an inverter that converts 24V DC (direct current) power into 120V AC (alternating current) electricity to power tools and appliances.
A built-in 30 amp transfer switch will automatically switch between shore power and battery-bank power within 10 mili seconds.
A 30 amp multi stage  battery charger uses AC power from the grid or from a generator to recharge a battery bank.
The battery-type selector on the top of the 3000 watt Pure Sine Power Converter allows the ability to adjust the charging voltage to the battery bank.
This 3KW 24V inverter and converter is built tough and ready to operate to its fullest extent.
This unit is available in 12 volt and 48 volt versions, available for 12 volt or 48 volt battery bank or off-grid system.
Inside of this 3000 watt 12volt inverter charger are heavy duty transformers producing the clean pure sine wave power of low THD. It is able to handle spikes from unstable power supplies in countries with unreliable power system. With a frequency switch, this inverter can be used in countries with a 50hz 120v ac system or 60hz 120v systems. Perfect for Caribbean Island nations and American RV, boat or home.

The reliable transfer switch boasts an average 10 millisecond transfer time , working actually as a uninterpretable power supply with battery backup system.

This inverter is a match set with any existing battery and generator system, as it is capable of accepting an AC power from generator to charge the batteries and starts the generator when battery voltage drops low.
There is a hard-point 3-wire AC output terminal capable of taking the massive 300% surge rating from the 2000 watt inverter all at once. The 9000 w surge rating lasts for 20 seconds, offering ample power for applications such as water pumps, microwaves or any other tough appliances you might throw at it.

————————–

If you want 3KW 24V model works with Tesla Model S 24vdc lithium battery module with voltage settings of

Low Battery Cut Off: 18Vdc
Low Battery Voltage Alarm/ Charger Activation: 18.5Vdc
Low Battery Cut Off Recovery: 23.5Vdc.
High Battery Voltage Alarm/ Charger Cut Off: 25.3Vdc
High Battery Cut Off: 25.5Vdc
Pls buy from our US distributor SolarGeni.
https://solargeni.com/Inverters?product_id=189


FEATURES

• 3000 watt inverter and converter
• 24Vdc input 120Volt true sine wave output
• 300% Unsurpassed surge capacity,6000 watt surge for 20 seconds
• Output voltage regulation to prevent a drop during a power surge
• AC/Battery Priority Selector
• Efficient, Power Factor Corrected, Multi Stage Smart Charger 50 Amp
• 10m sec typical transfer time
• State-of -Art auto load sense with power saver
• Resettable low battery cut-off of 20V and 21V
• Extremely efficient stand by circuit with 11 watt idle
• No interference with equipments like TV, radio, etc.
• Capable of working with microwave ovens
• Exclusively designed AC- and DC – line filters for clean power output
• Built-in LCD Remote Controller Port.

SPECIFICATIONS

Inverter Output Specifications:
• Continuous Output Power: 3000 Watts
• Surge Rating: 9000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Output Voltage: 120Vac
• Nominal Efficiency: 88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: <10%

Input Specifications:
• Nominal Input Voltage: 24.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 31.0Vdc
• Idle Consumption: 37 Watts
• Power Saver Mode Idle Consumption: 13 Watts

Charger Specifications:
• Output voltage: Depends on battery type selector setting
• Ac Input Voltage For Charger: Nominal 120Vac (90-135Vac+/-4%)
• Charger Rate: 50Amp
• Over Charge Protection Shutdown: 31.4V
• Input voltage range:90-135Vac
• Adjustable charge current: off-20%-100%
• Four Stage Smart Charger

Dimensions:
• Unit Weight: 49 lbs/22KG
• Unit Size L x W x H: 20*8.5*7″ inches/508*222*180mm
• Shipping Weight: 53 lbs/24KG
• Shipping L x W x H:27.6 x 12.8 x 12.4 inches/690*320*310mm

DOWNLOADS

3000 Watt Inverter Charger 24 Volt to 110V 120Vac Pure Sine Wave Manual

SERIES

Sigineer Pure Sine Inverter Charger Model List

Model #Rated PowerDC InputAC InputAC OutputCharger Amp
PSW71512NC1500 W12 Vdc120 Vac120 Vac35 A
PSW71524NC1500 W24 Vdc120 Vac120 Vac20 A
UL2012NC2000 W12 Vdc120 Vac120 Vac70 A
APC3012D3000 W12 Vac240 Vac120/240 Vac75 A
APC3012NC3000 W12 Vac120 Vac120 Vac75 A
APC3012D3000 W12 Vac240 Vac120/240 Vac75 A
APC3024NC3000 W24 Vdc120 Vac120 Vac50 A
APC3024D3000 W24 Vac240 Vac120/240 Vac75 A
M3000H-24LV3000 W24 Vdc120 Vac120 Vac60A+80A PV
APC3048NC3000 W48 Vdc120 Vac120 Vac30 A
APC3048D3000 W48 Vdc240 Vac120/240 Vac30 A
M3000H-48LV3000 W48 Vdc120 Vac120 Vac40A+80A PV
APC4012NC4000 W12 Vdc120 Vac120 Vac120 A
APC4012D4000 W12 Vdc240 Vac120/240 Vac120 A
M5000H-48BP5000W48 Vdc230 Vac230 Vac100A
APC5012NC5000 W12 Vdc120 Vac120 Vac140 A
APC6024D6000 W24 Vdc240 Vac120/240 Vac85 A
APC6048D6000 W48 Vdc240 Vac120/240 Vac65 A
M6000L-48SP6000 W48 Vdc240 Vac120/240 Vac60A+80A PV
HP10024D10000 W24 Vdc240 Vac120/240 Vac150 A
M12000L-48SP12000 W48 Vdc240 Vac120/240 Vac100A+120A PV
HP12048D12000 W48 Vdc240 Vac120/240 Vac120 A
HP15048D15000 W48 Vdc240 Vac120/240 Vac150 A
HP15096D15000 W96 Vdc240 Vac120/240 Vac70 A
HP18048D18000 W48 Vdc240 Vac120/240 Vac60 A
