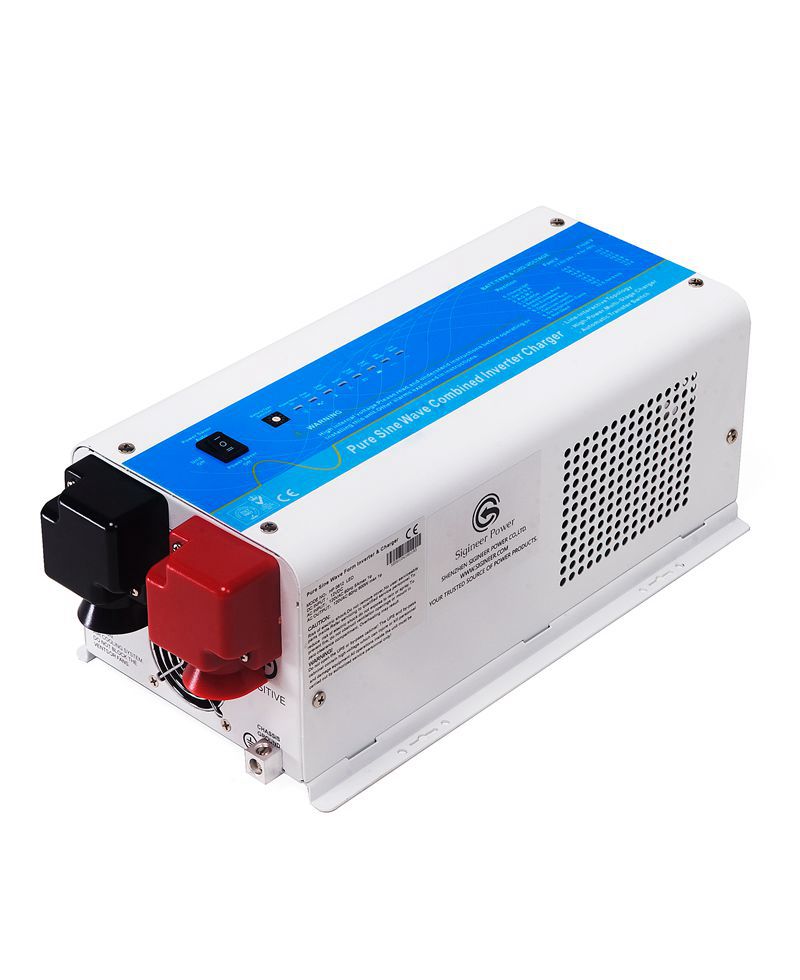

1500 Watt 24V dc to 110V 120Vac Pure Sine Wave PSW7 Inverter Charger

$449.00

Model #: PSW71524NC

This 1500 Watt PSW7 inverter charger changes 24V dc to 120V ac Pure Sine Wave. It is a power inverter, battery charger &  transfer switch with features dedicated for mobile applications such as work van, sprinter van, cargo van, conversion van, transit van and ice cream van.

Compact, lightweight. The AC output is obtained through GFCI. Features include overload, short circuit, over-temperature, under & over voltage protections.

SKU: PSW71524NC Category: 24V Inverter Charger Tags: 120Vac, 24Vdc, Inverter Charger, Pure Sine Wave, Single Phase, Transformer-based
  • Description
  • FEATURES
  • SPECIFICATIONS
  • DOWNLOADS
  • SERIES
  • Reviews (0)

Description


This 1500 watt PSW7 inverter charger is the most popular and competitive model in our classic PSW7 series.

It’s a combination of a 1.5KW inverter, with intelligent battery charging of 25 amperage and AC auto-transfer switch into one complete system.

This 1500 watt psw7 inverter charger converts 24 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts 60 Hz with a peak DC and AC conversion efficiency of 80%.
Features include PFC power factor correction for its powerful battery charger, capability of charging flat batteries, built-in GFCI power outlet, overload protection, low battery alarm / shut down, low idle power consumption of less than 0.4 Amps.
The 1.5KW PSW7 inverter is packed with unique features, and is the most advanced 1500 watt pure sine wave inverter in the market today.

Its battery type selector carries 8 different charging algorithms for batteries such as lead acid, GEL, AGM, lithium batteries.
The AC/Battery priority and auto generator start functionality make it suitable to work in either backup power or renewable energy or mobile applications such as work van, sprinter van, cargo van, conversion van, transit van and ice cream van.

When customized to Battery priority mode via a DIP switch, the 1.5KW van power inverter will extract maximum power from external sources and renewable energy systems, with only minimal battery cycles being required. The overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer.

In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to the AC utility.

In our earlier design, the battery voltage must be over 9V for the inverter to be powered on.
This inverter is built with a lithium battery wake-up module which will activate the charger with AC input power even when the battery voltage is 0Vdc.

It is battery type selector 9 is tailored to work with our brand of LIFEPO4 batteries with CV at 27.2V and cut off at 23V/24V.

We also have a similar 1.5KW 12V to 120Vac inverter.

FEATURES

1500 watt 24V dc to 120V ac low frequency inverter Charger
4500 watt surge for 20 seconds 300% surge capability
GFCI AC outlet
Conformal Coated for Marine Applications
Multi Stage Smart Charger 25 Amp
Remote LCD Panel Available
Less than 10msec Typical Transfer Time, great for emergency back up
Optional 25W Power Save Mode
7 Battery Type Settings for Charger
Low idle power draw of 0.4 amp
Temperature controlled cooling fan reduces energy consumption
Low interference with sensitive electronic loads
Wide operating DC input range: 21 – 33 VDC
Commercial grade design suitable for heavy duty loads, long periods of continuous operation
Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit

SPECIFICATIONS

Inverter Output Specifications:

  • Continuous Output Power: 1500 Watts
  • Surge Rating: 4500 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Output Voltage: 120Vac
  • Nominal Efficiency: 80% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: <10%

Input Specifications:

  • Nominal Input Voltage: 24.0Vdc
  • Minimum Start Batter Voltage: 18.0Vdc
  • Low Battery Alarm: 21Vdc/22.0Vdc
  • Low Battery Trip: 20.0Vdc/21Vdc
  • High Voltage Alarm: 32.0Vdc
  • Low Battery Voltage Restart: 31Vdc
  • Low Battery Voltage Recover: 13.0Vdc
  • Idle Consumption:8 watt

Charger Specifications:

  • Output voltage: Depends on battery Type
  • Ac Input Voltage For Charger: Nominal 120Vac (90-135Vac+/-4%)
  • Charger Rate: 25Amp
  • 7 Selectable Charge setting based on battery type
  • Adjustable charge current: off-20%-100%
  • Four Stage Smart Charger

Dimensions:

  • Unit Weight: 30lb/13.5KG
  • Unit Size L x W x H: 14.3 x 6.8 x 5.3 inches/365x173x135mm
  • Shipping Weight: 33lb/15KG
  • Shipping L x W x H: 18.7 x 9.0 x 8.0 inches/475x230x205mm

DOWNLOADS

1500 Watt 24V dc to 110V 120V ac Van Power Inverter Charger – Pure Sine Wave Manual

SERIES

Sigineer Pure Sine Inverter Charger Model List

Model #Rated PowerDC InputAC InputAC OutputCharger Amp
PSW71512NC1500 W12 Vdc120 Vac120 Vac35 A
PSW71524NC1500 W24 Vdc120 Vac120 Vac20 A
UL2012NC2000 W12 Vdc120 Vac120 Vac70 A
APC3012D3000 W12 Vac240 Vac120/240 Vac75 A
APC3012NC3000 W12 Vac120 Vac120 Vac75 A
APC3012D3000 W12 Vac240 Vac120/240 Vac75 A
APC3024NC3000 W24 Vdc120 Vac120 Vac50 A
APC3024D3000 W24 Vac240 Vac120/240 Vac75 A
M3000H-24LV3000 W24 Vdc120 Vac120 Vac60A+80A PV
APC3048NC3000 W48 Vdc120 Vac120 Vac30 A
APC3048D3000 W48 Vdc240 Vac120/240 Vac30 A
M3000H-48LV3000 W48 Vdc120 Vac120 Vac40A+80A PV
APC4012NC4000 W12 Vdc120 Vac120 Vac120 A
APC4012D4000 W12 Vdc240 Vac120/240 Vac120 A
M5000H-48BP5000W48 Vdc230 Vac230 Vac100A
APC5012NC5000 W12 Vdc120 Vac120 Vac140 A
APC6024D6000 W24 Vdc240 Vac120/240 Vac85 A
APC6048D6000 W48 Vdc240 Vac120/240 Vac65 A
M6000L-48SP6000 W48 Vdc240 Vac120/240 Vac60A+80A PV
HP10024D10000 W24 Vdc240 Vac120/240 Vac150 A
M12000L-48SP12000 W48 Vdc240 Vac120/240 Vac100A+120A PV
HP12048D12000 W48 Vdc240 Vac120/240 Vac120 A
HP15048D15000 W48 Vdc240 Vac120/240 Vac150 A
HP15096D15000 W96 Vdc240 Vac120/240 Vac70 A
HP18048D18000 W48 Vdc240 Vac120/240 Vac60 A
